Cab glass Same Fritzmeier
Browse to product table
Interested in buying products?
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!
- Tailored advice from our specialists
- More than 500.000 products
- Up-to-date information on current stock and delivery times
| Long description | Cab glass Same SLH |
|---|
Interested in buying products?
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!
- Tailored advice from our specialists
- More than 500.000 products
- Up-to-date information on current stock and delivery times
Product | Unit | Mounting position | Total height | Total width | Curved | Suitable for machine/vehicle model | Number of holes | Top width | Thickness | Suitable for machine/vehicle brand | Bottom width |
|---|---|---|---|---|---|---|---|---|---|---|---|
 202630FM Windscreen | Each | Front / Upper | 1330 mm | 526 mm | Yes | M210 / M214 | |||||
 203106FM Windscreen | Each | Front / Upper | 1135 mm | 520 mm | Yes | M211 / M215 | |||||
 520272FM Windscreen | Each | Front / Upper | 1164 mm | 697 mm | Yes | M701 / M711 / M781 / M782 | |||||
 520273FM Windscreen | Each | Front / Upper | 1164 mm | 697 mm | M771 / M703 / M713 / M780 | 1 | |||||
 520593FM Windscreen | Each | Front / Upper | Euro III/IV | 1105 mm | 6 mm | ||||||
520594FM Windscreen | Each | Front / Upper | 1324 mm | 794 mm | Euro III / IHC | Ford | |||||
520377FM Windscreen | Each | Front / Upper | 1000 mm | 700 mm | M611 | Fendt | |||||
521016FM Top door glass | Each | Door / Upper | 800 mm | 770 mm | 4 | ||||||
521017FM Door glass bottom | Each | Door / Lower | 760 mm | 790 mm | 4 | ||||||
130585FM Side glass rear | Each | Side / Rear | 641 mm | 421 mm | M711 | ||||||
130586FM Side glass front | Each | Side / Front | 641 mm | 511 mm | M711 | 4 | |||||
133176FM Side window front | Each | Side / Front | 561 mm | 506 mm | M711 | 4 | |||||

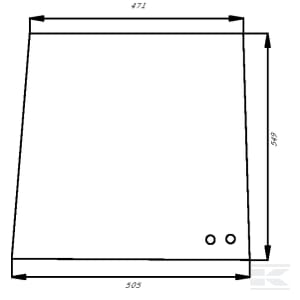

139551FM Side window front left | Each | Side / Left / Front | 549 mm | 505 mm | 2 | ||||||

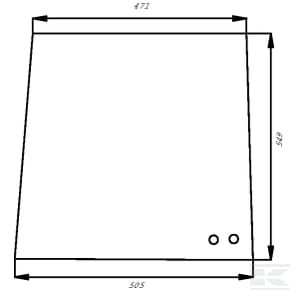

139552FM Side window front right | Each | Side / Right / Front | 549 mm | 505 mm | 2 | ||||||

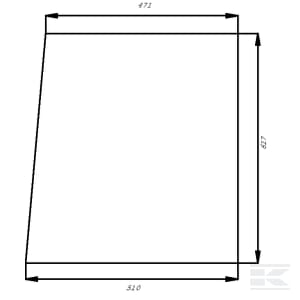

141799FM Side window left | Each | Side / Left | 617 mm | 510 mm | |||||||
520626FM Side window hinged Deutz | Each | Side | 575 mm | 540 mm | |||||||
520590FM Top door glass | Each | Door / Upper | 698 mm | Euro III/IV | 1174 mm | 1372 mm |
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
|
