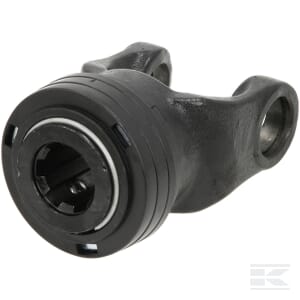

Push-fit yokes gopart
Browse to product table
Interested in buying products?
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!
- Tailored advice from our specialists
- More than 500.000 products
- Up-to-date information on current stock and delivery times
| Product details | Conforms to EN 12965 standard |
|---|
Interested in buying products?
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!
- Tailored advice from our specialists
- More than 500.000 products
- Up-to-date information on current stock and delivery times
Product | Unit | Type | Outside connection diameter | Inside connection diameter | Connection number of splines/grooves | Shaft size code | Locking system | Cross connection diameter | Cross cap diameter | Cross length | Outside connection diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|
 PTO910Y21DY83238GP Yoke, Quick disconnect, 38x32mm -8 spline, PTO 10 gopart | Each | Quick disconnect | 38 mm | 32 mm | 8 | PTO 10 | Collar lock | 22 mm | 22 mm | 54 mm | |
PTO910Y21DY1386GP Yoke, Quick disconnect, 1-3/8"-6 spline, PTO 10 gopart | Each | Quick disconnect | 34,93 mm | 29,76 mm | 6 | PTO 10 | Collar lock | 22 mm | 22 mm | 54 mm | 1-3/8 Inch |
PTO910Y21DY13821GP Yoke, Quick disconnect, 1-3/8"-21 spline, PTO 10 gopart | Each | Quick disconnect | 34,93 mm | 29,76 mm | 21 | PTO 10 | Collar lock | 22 mm | 22 mm | 54 mm | 1-3/8 Inch |
PTO910Y21DY1186GP Yoke, Quick disconnect, 1-1/8"-6 spline, PTO 10 gopart | Each | Quick disconnect | 28,59 mm | 24,3 mm | 6 | PTO 10 | Collar lock | 22 mm | 22 mm | 54 mm | 1-1/8 Inch |
PTO920Y21DY83238GP Yoke, Quick disconnect, 38x32mm -8 spline, PTO 20 gopart | Each | Quick disconnect | 38 mm | 32 mm | 8 | PTO 20 | Collar lock | 23,8 mm | 23,8 mm | 61,3 mm | |
PTO920Y21DY1386GP Yoke, Quick disconnect, 1-3/8"-6 spline, PTO 20 gopart | Each | Quick disconnect | 34,93 mm | 29,76 mm | 6 | PTO 20 | Collar lock | 23,8 mm | 23,8 mm | 61,3 mm | 1-3/8 Inch |
PTO920Y21DY13821GP Yoke, Quick disconnect, 1-3/8"-21 spline, PTO 20 gopart | Each | Quick disconnect | 34,93 mm | 29,76 mm | 21 | PTO 20 | Collar lock | 23,8 mm | 23,8 mm | 61,3 mm | 1-3/8 Inch |
PTO940Y21DY1386GP Yoke, Quick disconnect, 1-3/8"-6 spline, PTO 40 gopart | Each | Quick disconnect | 34,93 mm | 29,76 mm | 6 | PTO 40 | Collar lock | 27 mm | 27 mm | 74,6 mm | 1-3/8 Inch |
PTO940Y21DY83238GP Yoke, Quick disconnect, 38x32mm -8 spline, PTO 40 gopart | Each | Quick disconnect | 38 mm | 32 mm | 8 | PTO 40 | Collar lock | 27 mm | 27 mm | 74,6 mm | |
PTO940Y21DY13821GP Yoke, Quick disconnect, 1-3/8"-21 spline, PTO 40 gopart | Each | Quick disconnect | 34,93 mm | 29,76 mm | 21 | PTO 40 | Collar lock | 27 mm | 27 mm | 74,6 mm | 1-3/8 Inch |
PTO940Y21DY1186GP Yoke, Quick disconnect, 1-1/8"-6 spline, PTO 40 gopart | Each | Quick disconnect | 28,59 mm | 24,3 mm | 6 | PTO 40 | Collar lock | 27 mm | 27 mm | 74,6 mm | 1-1/8 Inch |
PTO950Y21DY1386GP Yoke, Quick disconnect, 1-3/8"-6 spline, PTO 50 gopart | Each | Quick disconnect | 34,93 mm | 29,76 mm | 6 | PTO 50 | Collar lock | 30,2 mm | 30,2 mm | 79,6 mm | 1-3/8 Inch |
PTO950Y21DY13821GP Yoke, Quick disconnect, 1-3/8"-21 spline, PTO 50 gopart | Each | Quick disconnect | 34,93 mm | 29,76 mm | 21 | PTO 50 | Collar lock | 30,2 mm | 30,2 mm | 79,6 mm | 1-3/8 Inch |
PTO960Y21DY1386GP Yoke, Quick disconnect, 1-3/8"-6 spline, PTO 60 gopart | Each | Quick disconnect | 34,93 mm | 29,76 mm | 6 | PTO 60 | Collar lock | 30,2 mm | 30,2 mm | 91,4 mm | 1-3/8 Inch |
PTO950Y21DY83238GP Yoke, Quick disconnect, 38x32mm -8 spline, PTO 50 gopart | Each | Quick disconnect | 38 mm | 32 mm | 8 | PTO 50 | Collar lock | 30,2 mm | 30,2 mm | 79,6 mm | |
PTO960Y21DY83238GP Yoke, Quick disconnect, 38x32mm -8 spline, PTO 60 gopart | Each | Quick disconnect | 38 mm | 32 mm | 8 | PTO 60 | Collar lock | 30,2 mm | 30,2 mm | 91,4 mm |
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
|
