Push-fit yokes with slide pin, gopart
Browse to product table
Interested in buying products?
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!
- Tailored advice from our specialists
- More than 500.000 products
- Up-to-date information on current stock and delivery times
Interested in buying products?
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!
- Tailored advice from our specialists
- More than 500.000 products
- Up-to-date information on current stock and delivery times
Product | Unit | Type | Outside connection diameter | Outside connection diameter | Connection number of splines/grooves | Shaft size code | Locking system | Cross connection diameter | Inside connection diameter |
|---|---|---|---|---|---|---|---|---|---|
 PTO9L21DY1186GP Yoke, quick disconnect, 1-1/8"-6 spline, L21 gopart | Each | Quick disconnect | 22 mm | 1-1/8 Inch | 6 | L21 | Push pin | 22 mm | |
 PTO9L21DY1386GP Yoke, quick disconnect, 1-3/8"-6 spline, L21 gopart | Each | Quick disconnect | 22 mm | 1-3/8 Inch | 6 | L21 | Push pin | 22 mm | |
 PTO9L21DY62125GP Yoke, quick disconnect, 25x21mm -6 spline, L21 gopart | Each | Quick disconnect | 25 mm | 6 | L21 | Push pin | 22 mm | 21 mm | |
 PTO9L22DY1386GP Yoke, quick disconnect, 1-3/8"-6 spline, L22 gopart | Each | Quick disconnect | 23,8 mm | 1-3/8 Inch | 6 | L22 | Push pin | 23,8 mm | |
 PTO9L23DY1386GP Yoke, quick disconnect, 1-3/8"-6 spline, L23 gopart | Each | Quick disconnect | 27 mm | 1-3/8 Inch | 6 | L23 | Push pin | 27 mm | |
PTO9L23DY1346GP Yoke, quick disconnect, 1-3/4"-6 spline, L23 gopart | Each | Quick disconnect | 27 mm | 1-3/4 Inch | 6 | L23 | Push pin | 27 mm | |
PTO9L24DY1386GP Yoke, quick disconnect, 1-3/8"-6 spline, L24 gopart | Each | Quick disconnect | 32 mm | 1-3/8 Inch | 6 | L24 | Push pin | 32 mm | |
PTO9L24DY13821GP Yoke, quick disconnect, 1-3/8"-21 spline, L24 gopart | Each | Quick disconnect | 32 mm | 1-3/8 Inch | 21 | L24 | Push pin | 32 mm | |

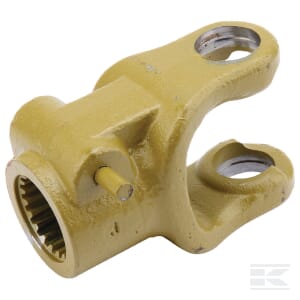

PTO9L24DY13420GP Yoke, quick disconnect, 1-3/4"-20 spline, L24 gopart | Each | Quick disconnect | 32 mm | 1-3/4 Inch | 20 | L24 | Push pin | 32 mm | |
PTO9L24DY83238GP Yoke, Quick disconnect, 38x32mm -8 spline, L24 gopart | Each | Quick disconnect | 38 mm | 8 | L24 | Push pin | 32 mm | 32 mm | |
PTO9L25DY1386GP Yoke, quick disconnect, 1-3/8"-6 spline, L25 gopart | Each | Quick disconnect | 36 mm | 1-3/8 Inch | 6 | L25 | Push pin | 36 mm |
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
|
