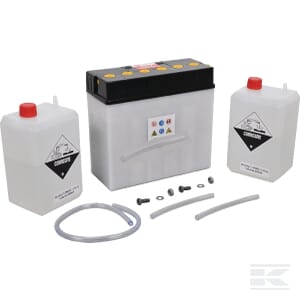

Long description | Starter batteries 6/12V for garden and forestry machinery, motorbikes, quads, etc. | |
---|---|---|
Details |
| |
Pros | High starting capacity | |
Product details |
| |
Application range | Starter battery for agricultural and forestry machines, motorbikes, quads etc. | |
Properties | High start capacity | |
Benefits |
|
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!
Product | Unit | Working type | Voltage | Capacity 20h (C20) | Cold start current EN | Length | Width | Height | Terminal layout code | Terminals type code | Mounting type code | Weight [filled] | Warranty period | Technology (Electrochemical System) | Acid | Application | Name of the substance | CAS No. (old) | Concentration | Intended use | Legal Explanation | Additional info | Weight [unfilled] |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Each | Starting up | 12.0 V | 3 Ah | 50 A | 114 mm | 71 mm | 86 mm | 0 | Y4 | B00 | 1,44 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | |||
Each | Starting up | 12.0 V | 4 Ah | 70 A | 114 mm | 71 mm | 106 mm | 0 | Y4 | B00 | 1,88 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | |||
Each | Starting up | 12.0 V | 6 Ah | 90 A | 114 mm | 71 mm | 131 mm | 0 | Y4 | B00 | 2,47 kg | 12 month | Lead acid | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | *Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver. | ||||||||
Each | Starting up | 12.0 V | 8 Ah | 120 A | 151 mm | 88 mm | 107 mm | 1 | Y4 | B00 | 2,81 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | |||
Each | Starting up | 12.0 V | 9 Ah | 130 A | 135 mm | 75 mm | 144 mm | 1 | Y6 | B00 | 2,3 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | |||
Each | Starting up | 12.0 V | 12 Ah | 165 A | 134 mm | 80 mm | 160 mm | 1 | Y6 | B00 | 3,2 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | |||
Each | Starting up | 12.0 V | 10 Ah | 185 A | 151 mm | 87 mm | 131 mm | 1 | Y4 | B00 | 3,66 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | |||
Each | Starting up | 12.0 V | 14 Ah | 128 A | 134 mm | 90 mm | 166 mm | 0 | Y11 | B00 | 3,6 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | |||
Each | Starting up | 12.0 V | 14 Ah | 200 A | 134 mm | 90 mm | 166 mm | 1 | Y4 | B00 | 3,8 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | |||
Each | Starting up | 12.0 V | 12 Ah | 200 A | 151 mm | 87 mm | 147 mm | 1 | Y4 | B00 | 4,28 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | |||
Each | Starting up | 12.0 V | 14 Ah | 230 A | 151 mm | 87 mm | 161 mm | 0 | Y4 | B00 | 4,46 kg | 12 month | Lead acid | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | *Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver. | ||||||||
Each | Starting up | 12.0 V | 18 Ah | 270 A | 175 mm | 87 mm | 156 mm | 0 | Y4 | B00 | 5,27 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | |||
Each | Starting up | 12.0 V | 20 Ah | 265 A | 206 mm | 90 mm | 162 mm | 0 | Y7 | B00 | 4,8 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | |||
Each | Starting up | 12.0 V | 24 Ah | 200 A | 184 mm | 124 mm | 174 mm | 0 | Y3 | B00 | 7,1 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | 4,8 kg | ||
Each | Starting up | 12.0 V | 24 Ah | 200 A | 184 mm | 124 mm | 174 mm | 1 | Y3 | B00 | 7,9 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | |||
Each | Starting up | 12.0 V | 24 Ah | 250 A | 197 mm | 130 mm | 159 mm | 1 | Y14 | B00 | 5,85 kg | 12 month | Lead acid | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | *Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver. | ||||||||
Each | Starting up | 12.0 V | 24 Ah | 220 A | 196 mm | 130 mm | 184 mm | 1 | Y14 | B00 | 7,3 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | 4,7 kg | ||
Each | Starting up | 12.0 V | 24 Ah | 250 A | 197 mm | 130 mm | 159 mm | 0 | Y14 | B00 | 5,85 kg | 12 month | Lead acid | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | *Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver. | ||||||||
Each | Starting up | 12.0 V | 24 Ah | 200 A | 196 mm | 130 mm | 184 mm | 0 | Y14 | B00 | 7,3 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | *Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver. | 4,7 kg | |
Each | Starting up | 12.0 V | 24 Ah | 260 A | 185 mm | 126 mm | 170 mm | 0 | Y3 | B00 | 7,95 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | 5,68 kg | ||
Each | Starting up | 12.0 V | 28 Ah | 300 A | 196 mm | 130 mm | 181 mm | 0 | Y14 | B00 | 7,97 kg | 12 month | Lead acid | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | *Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver. | 5,55 kg | |||||||
Each | Starting up | 12.0 V | 28 Ah | 300 A | 196 mm | 130 mm | 181 mm | 1 | Y14 | B00 | 7,97 kg | 12 month | Lead acid | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | *Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver. | 5,55 kg | |||||||
Each | Starting up | 12.0 V | 30 Ah | 300 A | 185 mm | 130 mm | 170 mm | 1 | Y6 | B00 | 8 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | 5,75 kg | ||
Each | Starting up | 12.0 V | 30 Ah | 300 A | 185 mm | 130 mm | 170 mm | 0 | Y10 | B00 | 8 kg | 12 month | Lead acid | With acid pack | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | Sulphuric acid | 7664-93-9 | 37-46 % | Filling batteries | Regulation (EU) 2019/1148 bans the sale of certain chemicals to members of the general public in Europe. This also applies to battery acid, whether supplied separately or in an acid pack with dry batteries. These batteries may still be supplied and/or sold to private individuals, but only after they have been filled and activated by a professional. Show more | 5,75 kg | ||
Each | Starting up | 12.0 V | 45 Ah | 350 A | 237 mm | 129 mm | 219 mm | 1 | B00 | 12,4 kg | 12 month | Lead acid | Lawn mower / Jet-Ski / Motorcycle / Quad / Scooter / Snowmobile / UTV | *Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver. | |||||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
