Suction Filter with valve, overview
Browse to product table
Interested in buying products?
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!
- Tailored advice from our specialists
- More than 500.000 products
- Up-to-date information on current stock and delivery times
| Long description | Arag suction filter with valve | |
|---|---|---|
| Product details |
|
Interested in buying products?
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!
- Tailored advice from our specialists
- More than 500.000 products
- Up-to-date information on current stock and delivery times
Product | Unit | Medium | Height | Outside diameter | Min flow rate | Inlet port diameter | Outlet port diameter | Mesh | Sensor port | Sensor port thread diameter | Sensor port thread type | Inlet port thread diameter | Filtration surface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3132453 Suct. filter 1 1/4" 80-120 l/min | Each | Water | 202 mm | 122 mm | 80 l/min | 20 mm | 20 mm | 50 | Yes | 1-1/4 Inch | Inch | ||
3132553 Suction filter 1 1/4" 50 mesh | Each | Water | 221 mm | 122 mm | 80 l/min | 39 mm | 50 | Yes | 1-1/4 Inch | Inch | |||
 3142453 Suct fltr 1 1/4" 100-160 l/min | Each | Water | 239,5 mm | 122 mm | 100 l/min | 20 mm | 80 | Yes | 1-1/4 Inch | Inch | |||
3142553 Suction filter 1 1/4" 50 mesh | Each | Water | 278,5 mm | 122 mm | 100 l/min | 50 | Yes | 1-1/4 Inch | Inch | 1-1/4 Inch | |||
 3142462 Suctionfilter 1 1/2" | Each | Water | 32 | ||||||||||
3142463 Suct. filter 1 1/2" 100-160 l/min | Each | Water | 239,5 mm | 122 mm | 100 l/min | 20 mm | 80 | Yes | 1-1/2 Inch | Inch | |||
3142563 Suct. filter 1 1/2" 100-160 l/min | Each | Water | 278,5 mm | 122 mm | 100 l/min | 39 mm | 50 | Yes | 1-1/2 Inch | Inch | |||
3162463 Suct. filter 1 1/2" 160-220 l/min | Each | Water | 287 mm | 168 mm | 160 l/min | 20 mm | 50 | Yes | 1-1/2 Inch | G | |||
3162563 Suction fl. 50 Mesh 1 1/2"out. | Each | Water | 287 mm | 168 mm | 160 l/min | 42 mm | 50 | Yes | 1-1/2 Inch | Inch | |||
3162472 Suct. filter 2" 160-220 l/min | Each | Water | 287 mm | 168 mm | 160 l/min | 20 mm | 32 | Yes | 2 Inch | Inch | |||
3162473 Suct. filter 2" 160-220 l/min | Each | Water | 287 mm | 168 mm | 160 l/min | 20 mm | 50 | Yes | 2 Inch | Inch | |||
3162572 Suction Filter 2" C/Valve 32m | Each | Water | 287 mm | 168 mm | 160 l/min | 42 mm | 32 | Yes | 2 Inch | Inch | |||
3172473 Suct. filter 2" 200-260 l/min | Each | Water | 293 mm | 168 mm | 200 l/min | 20 mm | 50 | Yes | 2 Inch | G | |||
3172573 Suction filter 2" self-cleaning LT 50 mesh | Each | Water | 168 mm | 50 | 265 cm² | ||||||||
31424535 Suction filter 1 1/4" 100-160 l/min 80 mesh | Each | Water | 239,5 mm | 122 mm | 100 l/min | 20 mm | 80 | Yes | 1-1/4 Inch | Inch | |||
31424635 Suction filter 1 1/2" 100-160 l/min 80 mesh | Each | Water | 239,5 mm | 122 mm | 100 l/min | 20 mm | 80 | Yes | 1-1/2 Inch | Inch | |||
3162462 Suction filter 1 1/2 c/valve | Each | Water | 287 mm | 168 mm | 32 | ||||||||
31624735 Suction filter | Each | Water | 307 mm | 168 mm | |||||||||

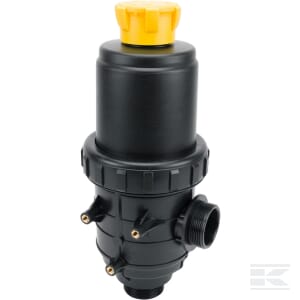

3172472AKB Filter 2" 32 mesh | Each | Water | 32 | ||||||||||
873T120 Regulation valve T6 | Each |
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
