Ball bearing inserts SKF, series XGGRAE..NPPB
Browse to product table
Interested in buying products?
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!
- Tailored advice from our specialists
- More than 500.000 products
- Up-to-date information on current stock and delivery times

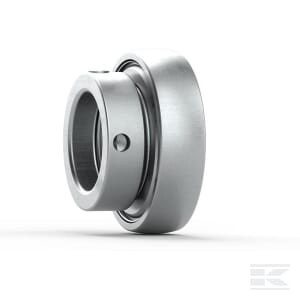

| Long description | SKF XG-GRAE bearings are deep groove ball bearings designed for use in the agricultural sector. These bearings feature a specially designed inner ring that helps increase bearing reliability and durability, and are equipped with a seal that protects against contamination and moisture. These bearings are specially developed to meet the stringent requirements of agricultural applications, providing a reliable and durable solution for a wide range of applications, including tillage machines, harvesters, sprayers and conveyor belts. Show more | |
|---|---|---|
| Product details |
| |
| Includes |
|
Interested in buying products?
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!
- Tailored advice from our specialists
- More than 500.000 products
- Up-to-date information on current stock and delivery times
Product | Unit | Inside diameter d | Outside diameter D | Outer ring width B | Inner ring width C | Basic radial load static | Basic radial load dynamic | Max rotation speed | Material | Weight | Sealing | Inner ring shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Each | 20 mm | 47 mm | 30,9 mm | 21,4 mm | 6650 N | 12800 N | 6500 r/min | Steel | 0,16 kg | 2RS | Cylindrical | |
| Each | 25 mm | 52 mm | 31 mm | 21,5 mm | 7880 N | 14000 N | 5850 r/min | Steel | 0,19 kg | 2RS | Cylindrical | |
| Each | 30 mm | 62 mm | 35,7 mm | 23,8 mm | 11300 N | 19500 N | 5000 r/min | Steel | 0,31 kg | 2RS | Cylindrical | |
| Each | 35 mm | 72 mm | 38,9 mm | 25,4 mm | 15300 N | 25700 N | 4300 r/min | Steel | 0,51 kg | 2RS | Cylindrical | |
| Each | 40 mm | 80 mm | 43,7 mm | 30,2 mm | 20000 N | 32600 N | 3750 r/min | Steel | 0,63 kg | 2RS | Cylindrical | |
| Each | 45 mm | 85 mm | 43,7 mm | 30,2 mm | 20500 N | 32700 N | 3400 r/min | Steel | 0,66 kg | 2RS | Cylindrical | |
| Each | 50 mm | 90 mm | 43,7 mm | 30,2 mm | 23200 N | 35100 N | 3300 r/min | Steel | 0,75 kg | 2RS | Cylindrical | |
| Each | 55 mm | 100 mm | 48,5 mm | 32,5 mm | 29200 N | 43400 N | 3000 r/min | Steel | 1,05 kg | 2RS | Cylindrical | |
| Each | 60 mm | 110 mm | 49,5 mm | 33,5 mm | 36100 N | 52400 N | 2700 r/min | Steel | 1,35 kg | 2RS | Cylindrical | |
| Each | 25 mm | 52 mm | 31 mm | 21,5 mm | 7880 N | 14000 N | 5850 r/min | Steel | 0,19 kg | 2RS | Cylindrical | |
| Each | 30 mm | 62 mm | 35,7 mm | 23,8 mm | 11300 N | 19500 N | 5000 r/min | Steel | 0,31 kg | 2RS | Cylindrical | |
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
