Product details |
|
---|
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!

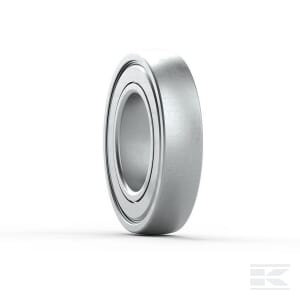

Product | Unit | Inside diameter d | Outside diameter D | Width B | Sealing | Inner ring shape | Bearing model type | Basic radial load static | Basic radial load dynamic | Max rotation speed | Outer ring width B | Inner ring width B | Material | Weight |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Each | 17 mm | 40 mm | 12 mm | 2RS | Cylindrical | Deep groove ball bearings | 497 N | 9570 N | 7200 r/min | 12 mm | 12 mm | Steel | 0,07 kg | |
Each | 20 mm | 47 mm | 14 mm | 2RS | Cylindrical | Deep groove ball bearings | 6650 N | 12800 N | 6500 r/min | 14 mm | 14 mm | Steel | 0,106 kg | |
Each | 25 mm | 52 mm | 15 mm | 2RS | Cylindrical | Deep groove ball bearings | 7880 N | 14000 N | 5850 r/min | 15 mm | 15 mm | Steel | 0,134 kg | |
Each | 30 mm | 62 mm | 16 mm | 2RS | Cylindrical | Deep groove ball bearings | 11300 N | 19500 N | 5000 r/min | 16 mm | 16 mm | Steel | 0,2 kg | |
Each | 35 mm | 73 mm | 17 mm | 2RS | Cylindrical | Deep groove ball bearings | 15300 N | 25700 N | 4300 r/min | 17 mm | 17 mm | Steel | 0,288 kg | |
Each | 40 mm | 80 mm | 18 mm | 2RS | Cylindrical | Deep groove ball bearings | 20000 N | 32600 N | 3750 r/min | 18 mm | 18 mm | Steel | 0,366 kg | |
Each | 45 mm | 85 mm | 19 mm | 2RS | Cylindrical | Deep groove ball bearings | 20500 N | 32700 N | 3400 r/min | 19 mm | 19 mm | Steel | 0,4 kg | |
Each | 50 mm | 90 mm | 20 mm | 2RS | Cylindrical | Deep groove ball bearings | 23200 N | 35100 N | 3300 r/min | 20 mm | 20 mm | Steel | 0,45 kg | |
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
