Toothed-belts overview
Browse to product table
Interested in buying products?
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!
- Tailored advice from our specialists
- More than 500.000 products
- Up-to-date information on current stock and delivery times
Interested in buying products?
Want to know more about the prices or order directly? This is possible when you are affiliated with a dealer in your area. Do you want to sell products via Kramp as a dealer? Then sign up!
- Tailored advice from our specialists
- More than 500.000 products
- Up-to-date information on current stock and delivery times
Product | Unit | Suitable for machine/vehicle brand | Original number equivalent | Profile | Width | Pitch length | Number of teeth | Teeth double sided | Suitable for machine/vehicle model | Teeth pitch | Tension cord material | Material | Height | Teeth width | Width | Technical item description | Suitable for back tensioner |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EPC027898 Timing belt | Each | Sabo / John Deere | EPC027898 / SA27898 | ||||||||||||||
 6020332 V-belt | Each | Wolf | Wolf: 6020-332 | 5M | 15 mm | 295 mm | 59 | No | Campus | ||||||||
 75405049 Timing belt down | Each | MTD | MTD: 754-05049 | 5M | 19 mm | 320 mm | 64 | No | VS 302 E, VA 303 E | ||||||||
 75405048 Timing belt ahead | Each | MTD | MTD: 754-05048 | 5M | 320 mm | 64 | No | VS 302 E, VA 303 E | |||||||||
 00075966 Timing belt 65 teeth 325 Gutbrod | Each | Gutbrod | MTD: 000.75.966 | 5M | 5 mm | 325 mm | 65 | No | |||||||||
AK548606 Timing belt 8M 65 teeth 520x10mm AL-KO | Each | AL-KO | AL-KO: 548606 | 8M | 10 mm | 520 mm | 65 | No | 8 mm | ||||||||
0039004 Timing belt 8M 70 teeth 560x10mm Wolf-Garten | Each | Wolf | Wolf: 0039-004 | 8M | 10 mm | 560 mm | 70 | No | 8 mm | ||||||||
0039003 Timing belt 8M HTD 75 teeth 600x8mm Wolf-Garten | Each | Wolf | Wolf: 0039-003 / 0039-001 | 8M HTD | 8 mm | 600 mm | 75 | No | UV-EK, Serie C De Luxe | 8 mm | |||||||
FGP003545 Timing belt 79 teeth 372 Optibelt | Each | Atco | Atco: F016T41945 / T41945 / T43506 / T44061 / T47169 | 372 mm | 79 | No | RE 30, 35, System 250, 300, 350, TX 360 | ||||||||||
0039005 Timing belt SM STD 80 teeth 640x15mm Wolf-Garten | Each | Wolf | Wolf: 0039-005 | SM STD | 15 mm | 640 mm | 80 | No | UV-EB | ||||||||
100000811 Timing belt 5M 85 teeth 425x9mm MTD | Each | Gutbrod | Gutbrod: 100.000.811 | 5M | 9 mm | 425 mm | 85 | No | V31EL | 5 mm | |||||||
474371 V-Belt Toothed 450V-Belt5MV-Belt15 | Each | AL-KO | AL-KO: 474371, 463781 | 5M | 15 mm | 450 mm | 90 | No | 32VL, 32VE, Comfort 32VE, Comfort 38VLB | ||||||||
0039009 Timing belt 5M 95 teeth 475x12mm Wolf-Garten | Each | Wolf | Wolf: 0039-009 | 5M | 12 mm | 475 mm | 95 | No | UL33E, UV28EVD, UV28EV, UV28ED, UV29EV | 5 mm | |||||||

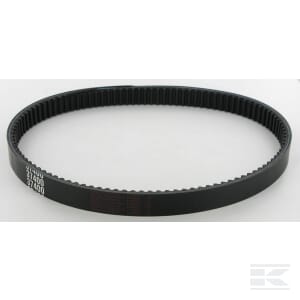

1197000620 Timing belt Stiga | Each | Stiga | Stiga: 119700062/0 | 20 mm | 710 mm | 98 | No | Garden Compact EV,Garden Compact Ethanol EV | |||||||||
1134919802 Toothed belt Park 95 Combi | Each | Stiga | 1134-9198-02 / 1134-9198-01 / 9585-0164-01 / 135061513/0 / 35061513/0 | 8M | 12 mm | 800 mm | 100 | No | Park 95 Combi | Kevlar® | |||||||
75404031 Toothed belt MTD | Each | MTD | MTD: 754-04031 | 5M | 15 mm | 520 mm | 104 | No | Verticuteermachine | ||||||||
1134918902 Toothed belt 105m combi deck | Each | Stiga | Stiga: 1134-9189-02 / 1134-9189-01 / 9585-0165-01 | 12 mm | 856 mm | 107 | No | Park 105 Combi | Kevlar® | ||||||||
0039007 Timing belt 5M HTD 107 teeth 535x15mm Wolf-Garten | Each | Wolf | Wolf: 0039-007 | 5M HTD | 15 mm | 535 mm | 107 | No | UV30EV, UV32EV, UV34EV | 5 mm | |||||||
100000900 Timing belt 5M 110 teeth 550x15mm MTD | Each | Gutbrod | Gutbrod: 100.000.900 | 5M | 15 mm | 550 mm | 110 | No | TSV40B, V40G, V41BL | 5 mm | |||||||
2440338 Timing belt 113 teeth Lombardini | Each | Lombardini | Lombardini: 2440 338 | 113 | No | ||||||||||||
2440298 Timing belt 114 teeth Lombardini | Each | Lombardini | Lombardini: 2440 298 | 114 | No | ||||||||||||
FGP010003 Timing belt 128 teeth Optibelt | Each | Atco | Atco: F016L23014 / L23014 | 128 | No | Club B17 | |||||||||||

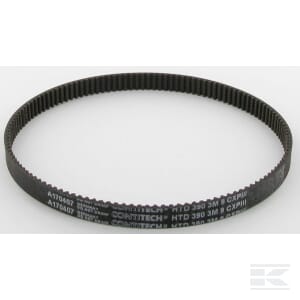

B11389 Timing belt 130 teeth Brill | Each | Brill | Brill: 11389 | 3M | 9 mm | 390 mm | 130 | No | Accu 38 | ||||||||
9585008700 Toothed belt Park 2002 | Each | Stiga | Stiga: 9585-0087-00 / 1134-9194-01 | 8M | 12 mm | 1040 mm | 130 | No | Maaidek Park 102M, Villa 102M | Rubber | |||||||
1134919401 Toothed belt for 102M | Each | Stiga | Stiga: 1134-9194-01 / 9585-0087-00 | 8M | 12 mm | 1040 mm | 130 | No | Maaidek Park 102M, Villa 102M | Rubber | |||||||
FGP009121 Timing belt 5M 133 teeth 665 Optibelt | Each | Atco | Atco: F016L22990 / L22990 | 5M | 15 mm | 665 mm | 133 | No | Suffolk Punch, Ensign, Diplomat, (Export Models) | 5 mm | 3,4 mm | 1 mm | |||||
1134913301 Timing belt 140 teeth 1120x12mm Stiga | Each | Stiga | Stiga: 1134-9133-01 / 9585-0173-01 | 8M | 12 mm | 1120 mm | 140 | No | Primo, 1125M, Villa320 | ||||||||
1134918202 Toothed belt 85C-85QF | Each | Stiga | Stiga: 1134-9182-02 / 1134-9182-01 / 9585-0161-01 / 9585-0085-00 / 35061511/0 | 8M | 12 mm | 1160 mm | 145 | No | Villa 85 Combi, Park 121M, Park 85 Combi QF | Kevlar® | 15/32 Inch | PLATFORM: 4 WHEELS / PLATFORM FAMILY: FRONT MOWER | |||||
1134903001 Toothed belt | Each | Stiga | Stiga: 1134-9030-01 / 9585-0071-00 | 8M | 20 mm | 1200 mm | 150 | No | Villa I 85M | Rubber | 3/4 Inch | ||||||
1134919301 Toothed belt 85m | Each | Stiga | Stiga: 1134-9193-01 / 9585-0135-01 | 8M | 12 mm | 1200 mm | 150 | No | Maaidek Villa II 85M, Ready 85M | ||||||||
1134917101 Timing belt | Each | Stiga | Stiga: 1134-9171-01 / 9585-0220-01 | 8M | 12 mm | 1216 mm | 152 | No | Villa 520 | Rubber | |||||||
GW1773600 Timing belt MTD | Each | MTD | Bolens: 1773600 / Bolens: 1764995 | 8M | 16 mm | 1248 mm | 156 | No | |||||||||
1134918302 Toothed belt Villa 95C-95QF Combi EL (2018) | Each | Stiga | Stiga: 1134-9183-02 / Stiga: 1134-9183-01 / Stiga: 9585-0162-01 / Stiga: 135061512/0 | 8M | 12 mm | 1248 mm | 156 | No | Villa 95C-95QF Combi EL (2018) | Kevlar® | PLATFORM: 4 WHEELS / PLATFORM FAMILY: FRONT MOWER | ||||||
0039008 Timing belt 158 teeth 474 Wolf-Garten | Each | Wolf | Wolf: 0039-008 | 3M | 474 mm | 158 | No | UL33E | |||||||||
9585009501 Toothed belt Villa 92cm | Each | Stiga | Stiga: 9585-0095-01 | 20 mm | 1280 mm | 160 | No | Villa II 92M, Ready 92M | 3/4 Inch | ||||||||
75404136 Timing belt 160 teeth 1280x20mm MTD | Each | MTD | MTD: 754-04136 | 8M | 20 mm | 1280 mm | 160 | No | Wide Cut E, MF 33 SE | ||||||||
GW1773601 Timing belt 170 teeth 1360x16mm MTD | Each | MTD | Bolens: 1773601 / 1765212 / MTD: GW1773601 / GW1765212 | 16 mm | 1360 mm | 170 | No | ||||||||||
1134918401 Toothed belt | Each | Stiga | Stiga: 1134-9184-01 / 9585-0163-01 | 8M | 12 mm | 1360 mm | 170 | No | Villa 105 Combi | ||||||||
9585013301 Toothed belt 107cm villa | Each | Stiga | Stiga: 9585-0133-01 | 8M | 17 mm | 1424 mm | 178 | No | Villa II 107M | 25/32 Inch | |||||||
7540246 Timing belt MTD | Each | MTD | MTD: 754-0246 | 8M | 20 mm | 1440 mm | 180 | No | |||||||||
75404167 Timing belt MTD | Each | MTD | MTD: 754-04167 | 8M | 20 mm | 1512 mm | 189 | No | Maaidek frontmaaier 42" | ||||||||
1134919001 Toothed belt park 92m | Each | Stiga | Stiga: 1134-9190-01 / 9585-0131-01 | 8M | 20 mm | 1760 mm | 220 | No | Maaidek Park 92M | Rubber | Yes | ||||||
9585013101 Toothed belt 92M | Each | Stiga | Stiga: 9585-0131-01 / 1134-9190-01 | 8M | 20 mm | 1760 mm | 220 | No | Maaidek Park 92M | Rubber | 3/4 Inch | Yes | |||||
1134919101 Toothed belt park 107M Hd | Each | Stiga | Stiga: 1134-9191-01 / 9585-0132-01 | 20 mm | 1880 mm | 235 | No | Maaidek Park 107M, Park 107M HD | Rubber | ||||||||
9585013201 Timing belt 235 teeth 1880x20mm Stiga | Each | Stiga | Stiga: 9585-0132-01 / 1134-9191-01 | 8M | 20 mm | 1880 mm | 235 | No | Maaidek Park 107M, Park 107M HD | Rubber | |||||||
1724626SM Timing belt 250 teeth 2000x30mm Simplicity - Snapper | Each | Snapper | Snapper: 1724626SM | 30 mm | 2000 mm | 250 | No | ||||||||||
WI40769 Timing belt 2000x20mm MTD | Each | Wisconsin / MTD | Wisconsin: WI-40769 | 8M | 20 mm | 2000 mm | 250 | Yes | |||||||||
2440343 Timing belt Lombardini | Each | Lombardini | Lombardini: 2440 343 | No | |||||||||||||
ET30506 Timing belt 1050x25mm Etesia | Each | Etesia | Etesia: 30506 | 25 mm | 1050 mm | No | |||||||||||
6020330 Timing belt Wolf-Garten | Each | Wolf | Wolf: 6020-330 | No | |||||||||||||
1811241001 Timing belt Stiga | Each | Stiga | Stiga: 1811-2410-01 | No | Aandrijving Snow Rise (2006) | ||||||||||||
AK412087 Ribbed belt | Each | AL-KO | AL-KO: 412087 | No |
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
| ||||||
|
